IO-4360A & IOA-4200

Home Interests My Opinion KC8RP Family Genealogy Favorites

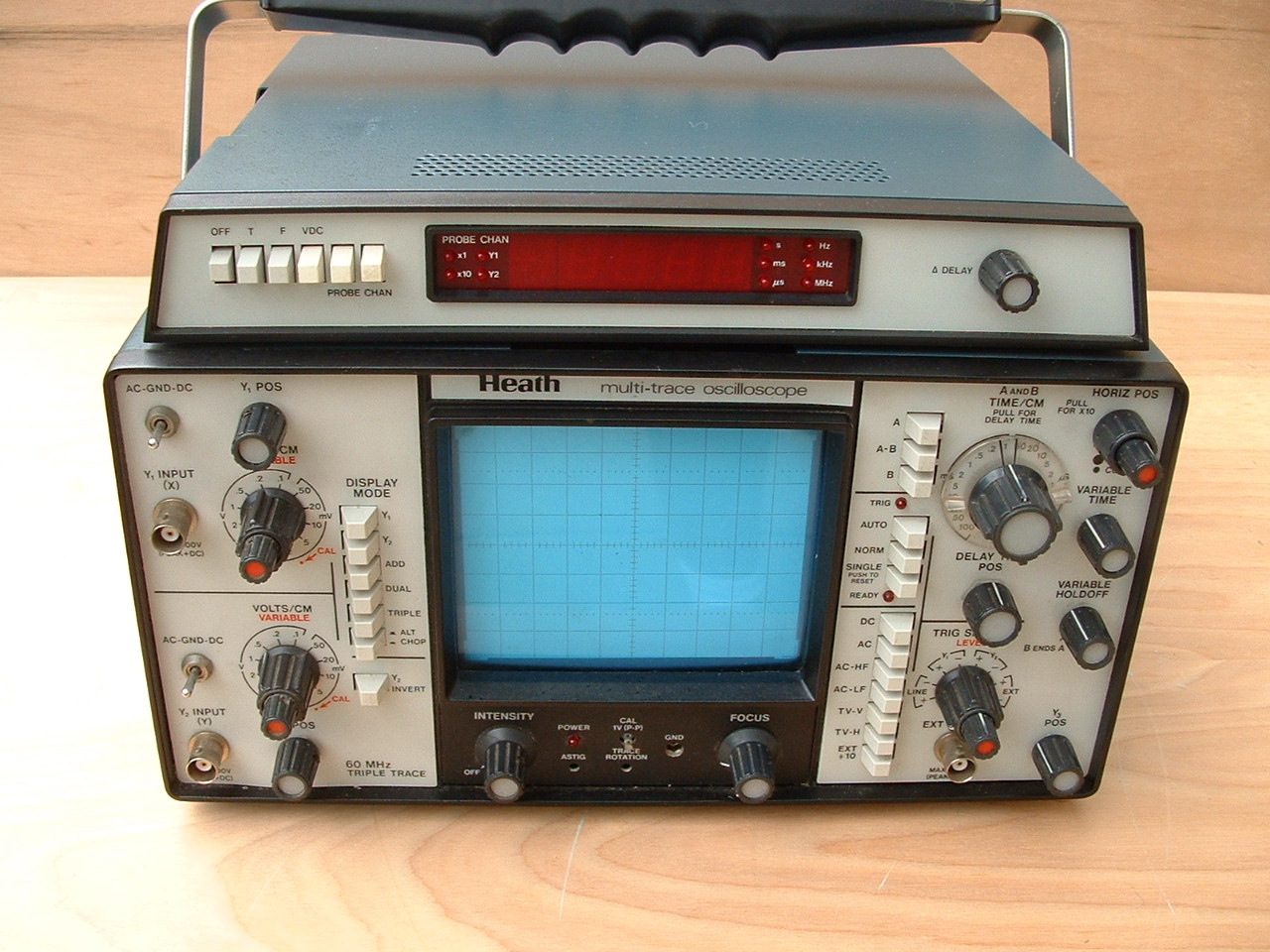

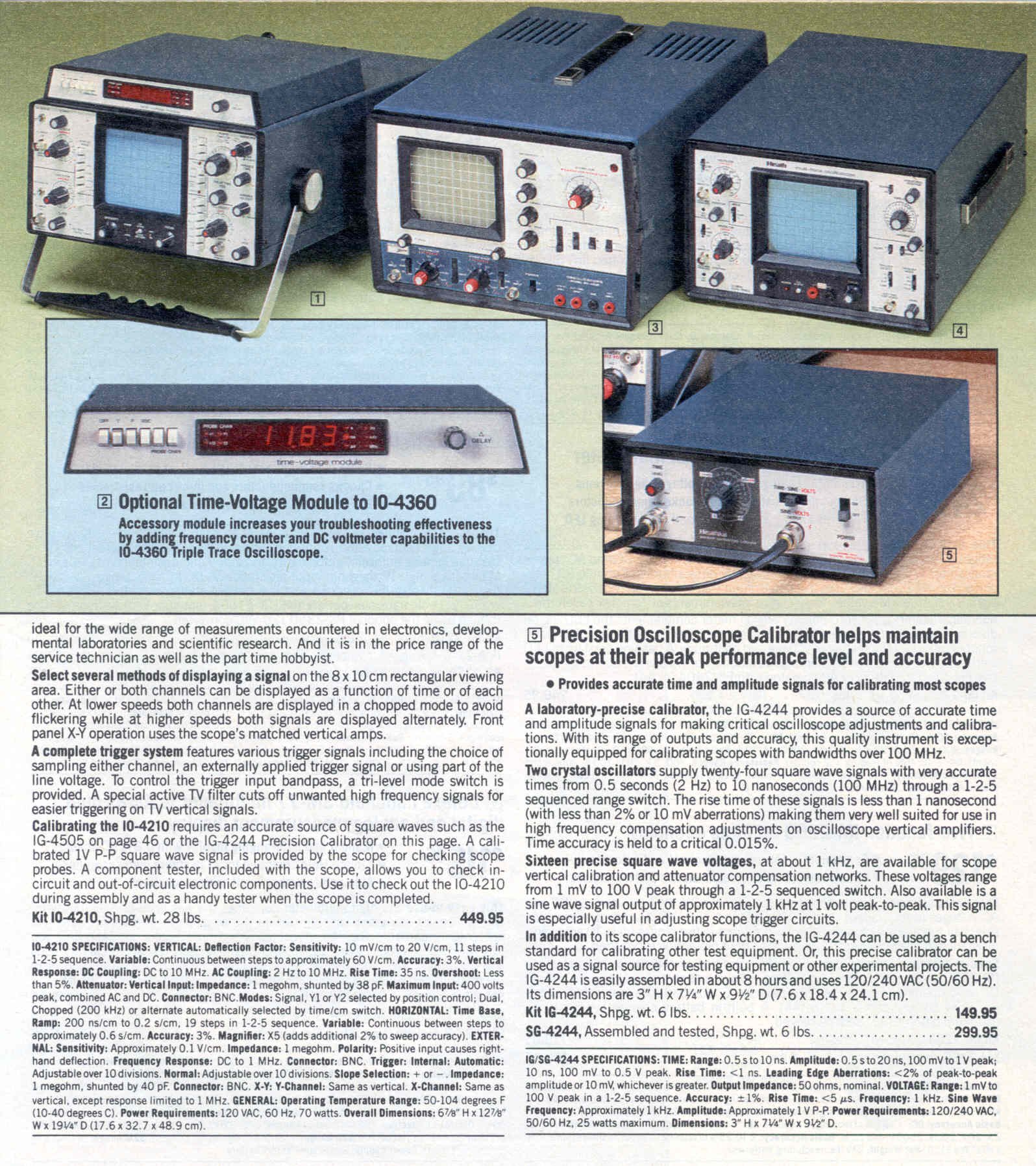

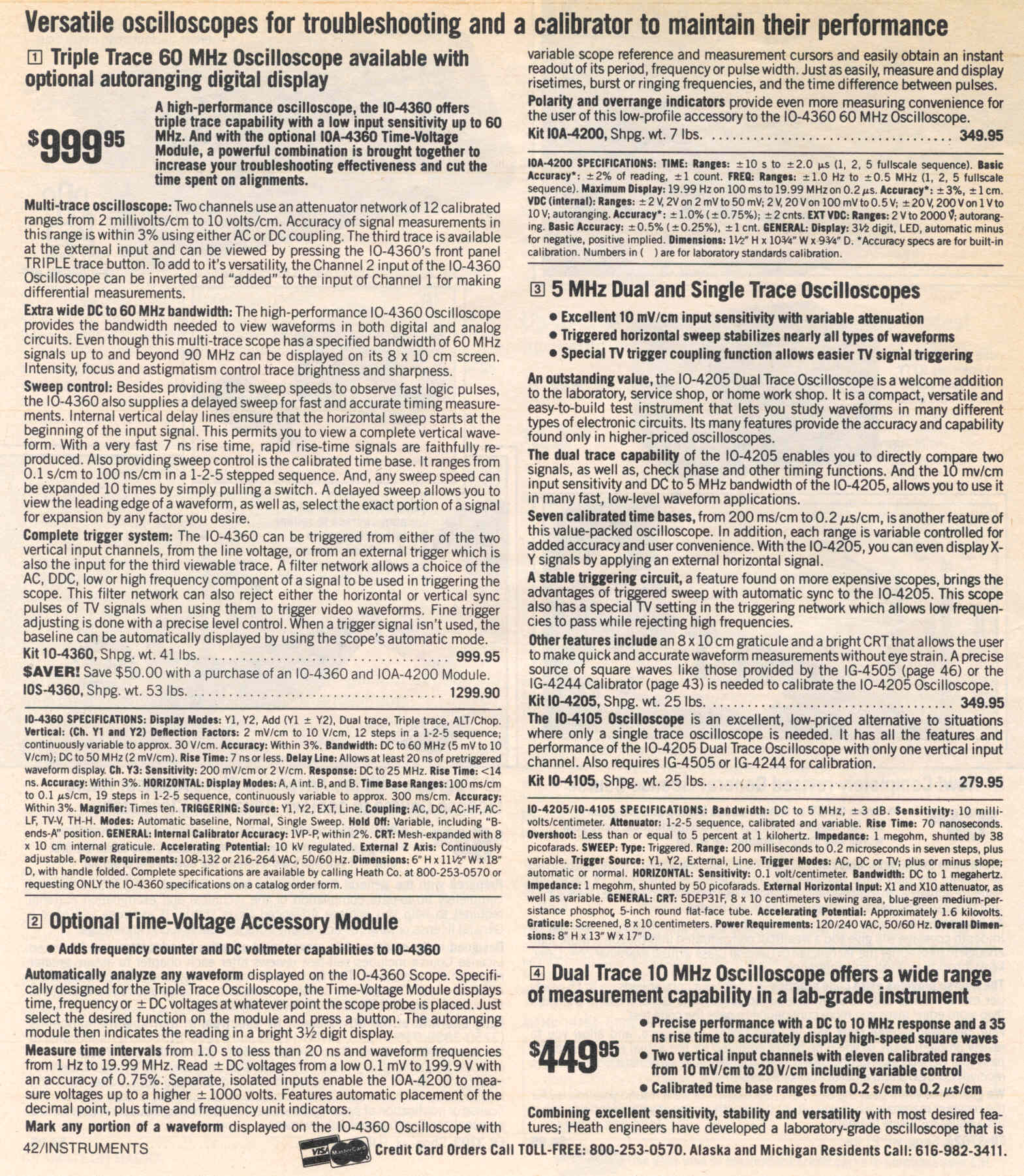

60 MHz Triple Trace Oscilloscope & Time Voltage Module

Introduced in the Winter of 1983.

horizontal rule

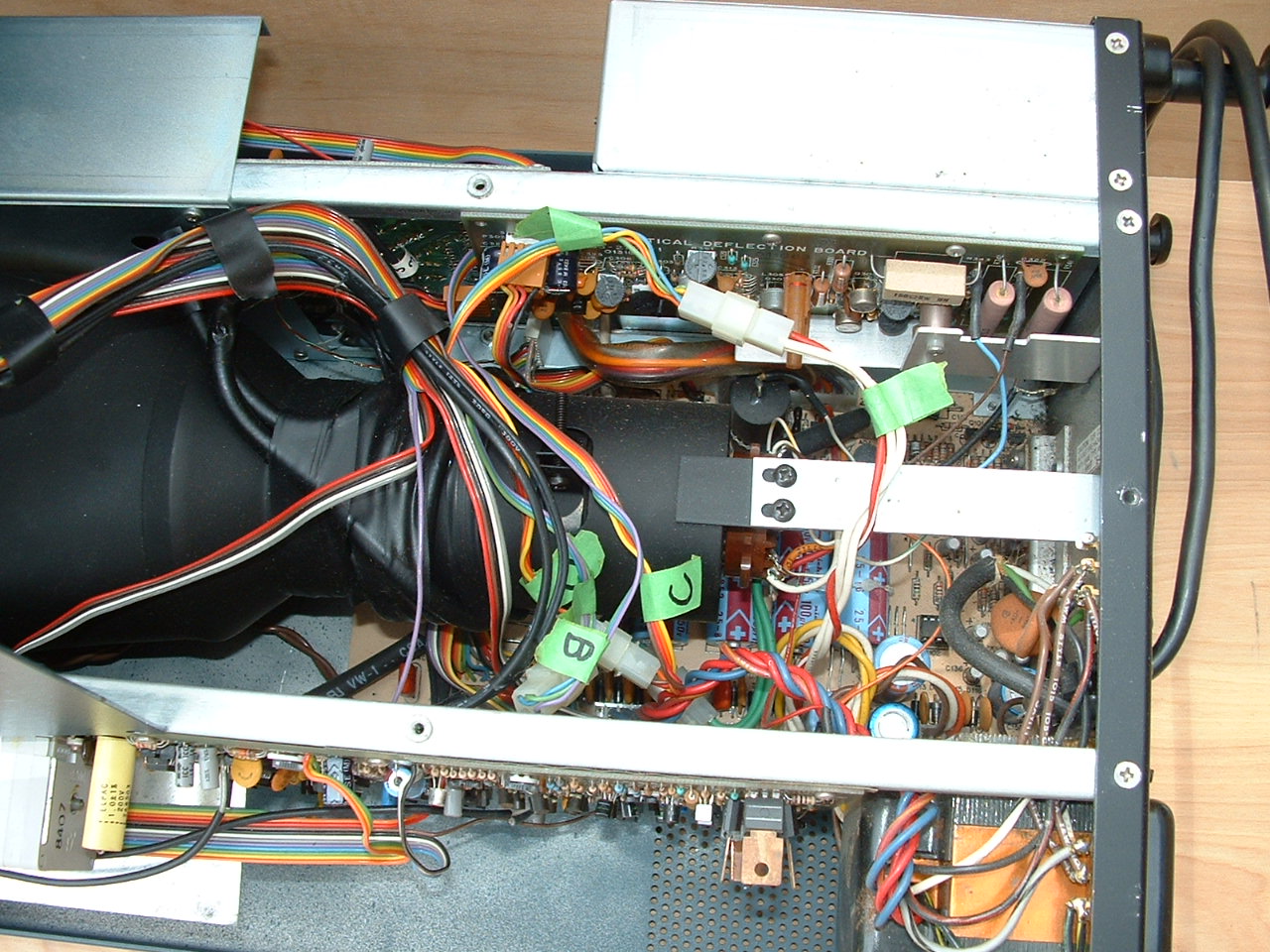

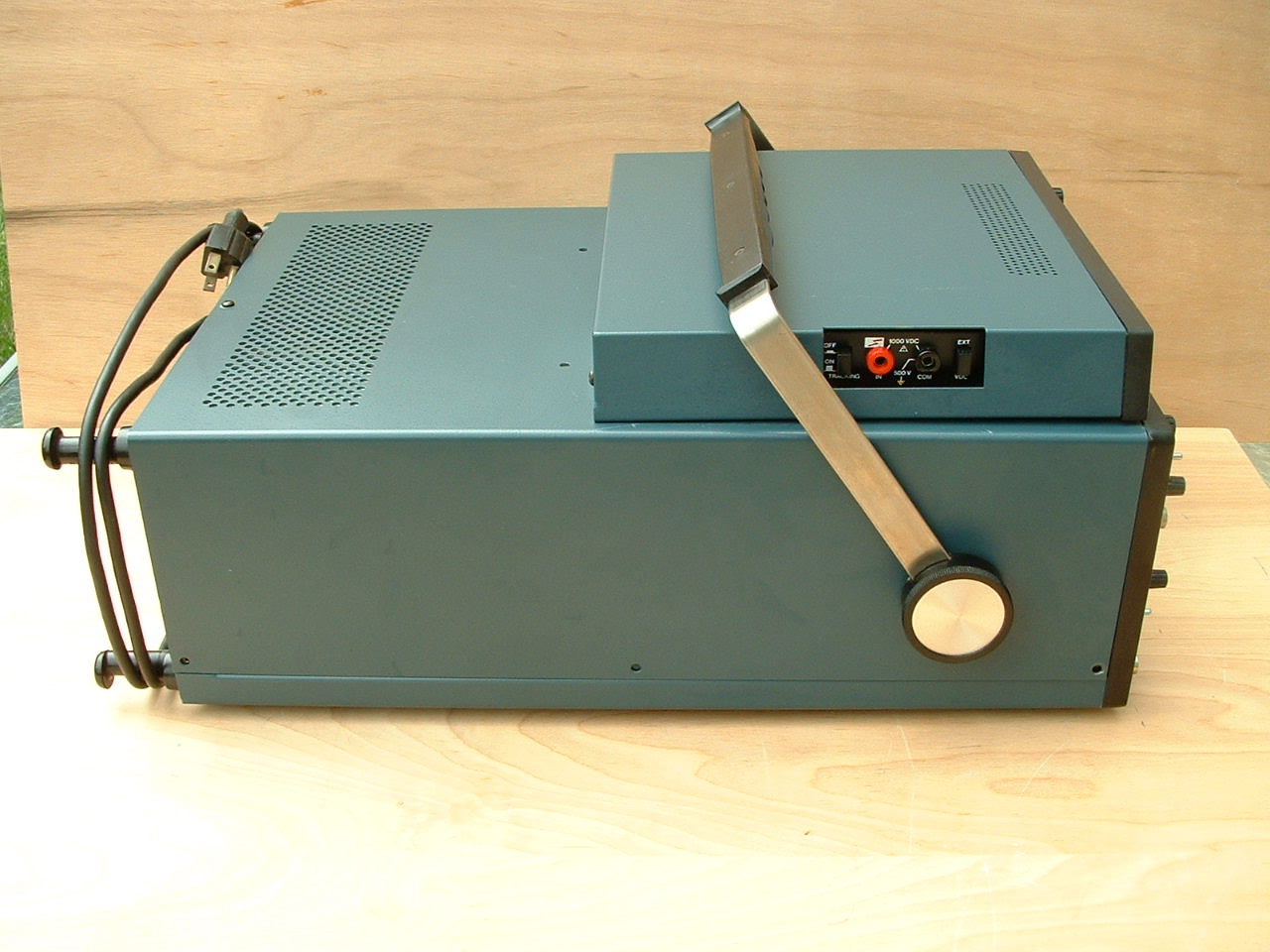

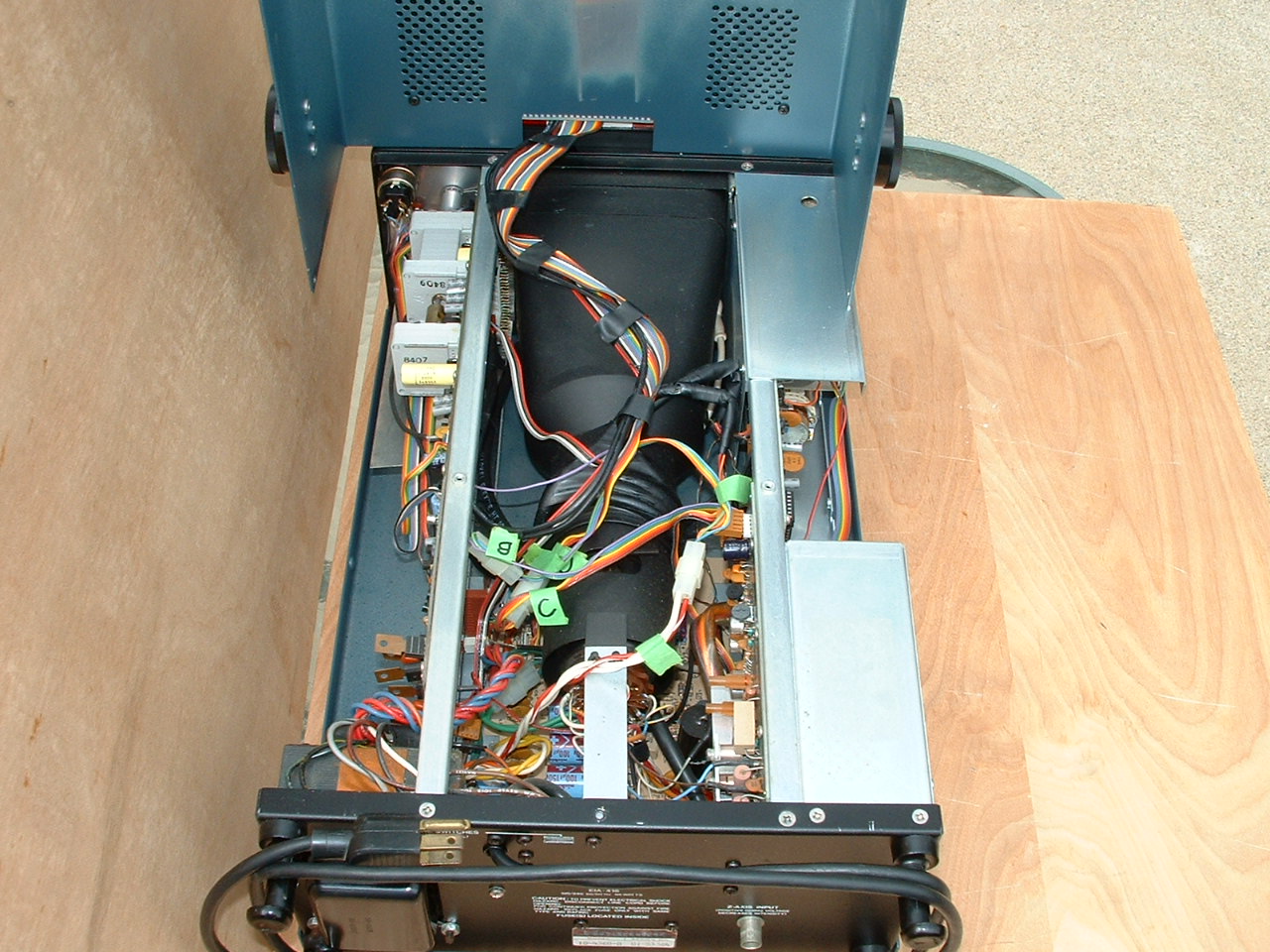

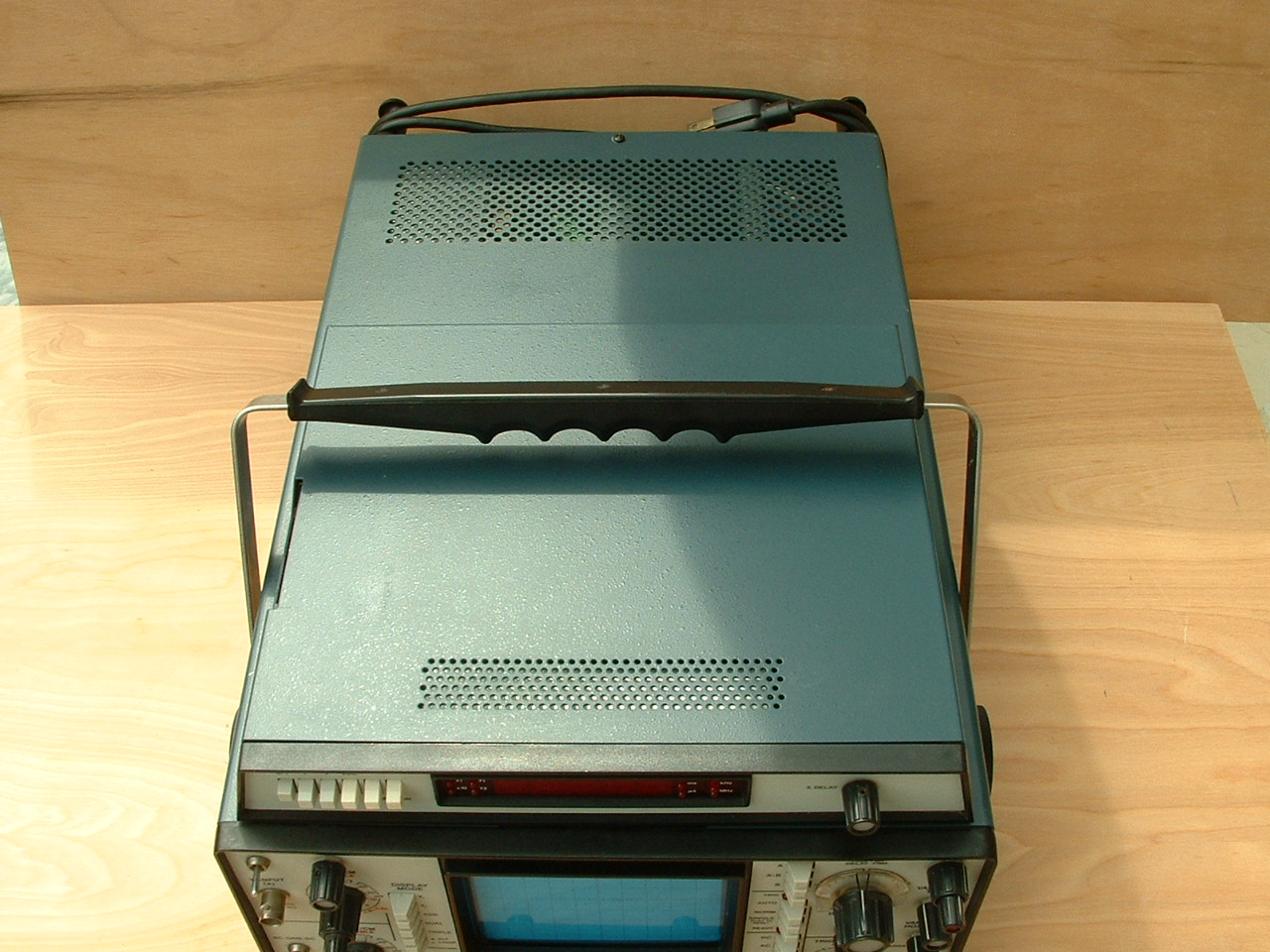

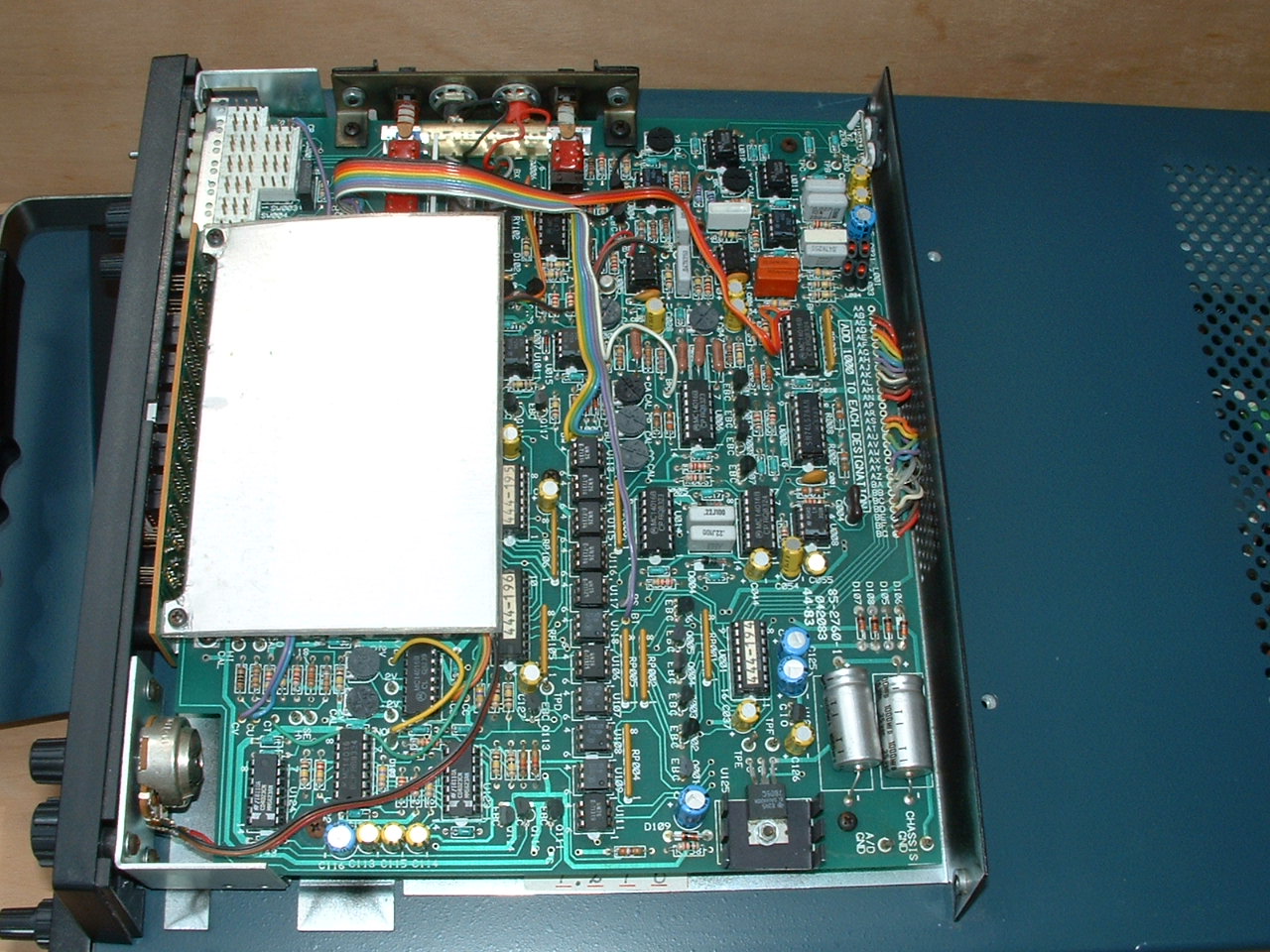

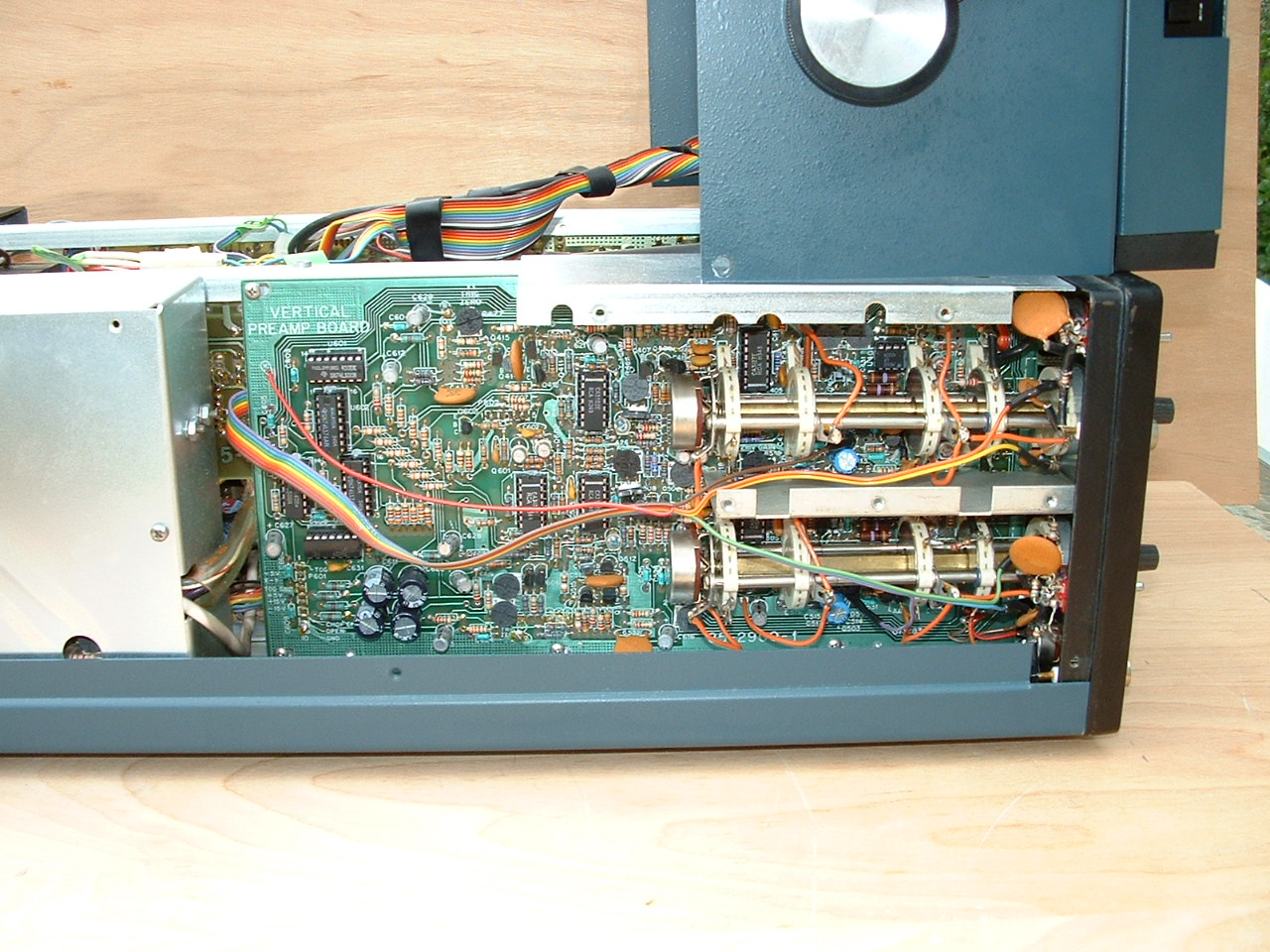

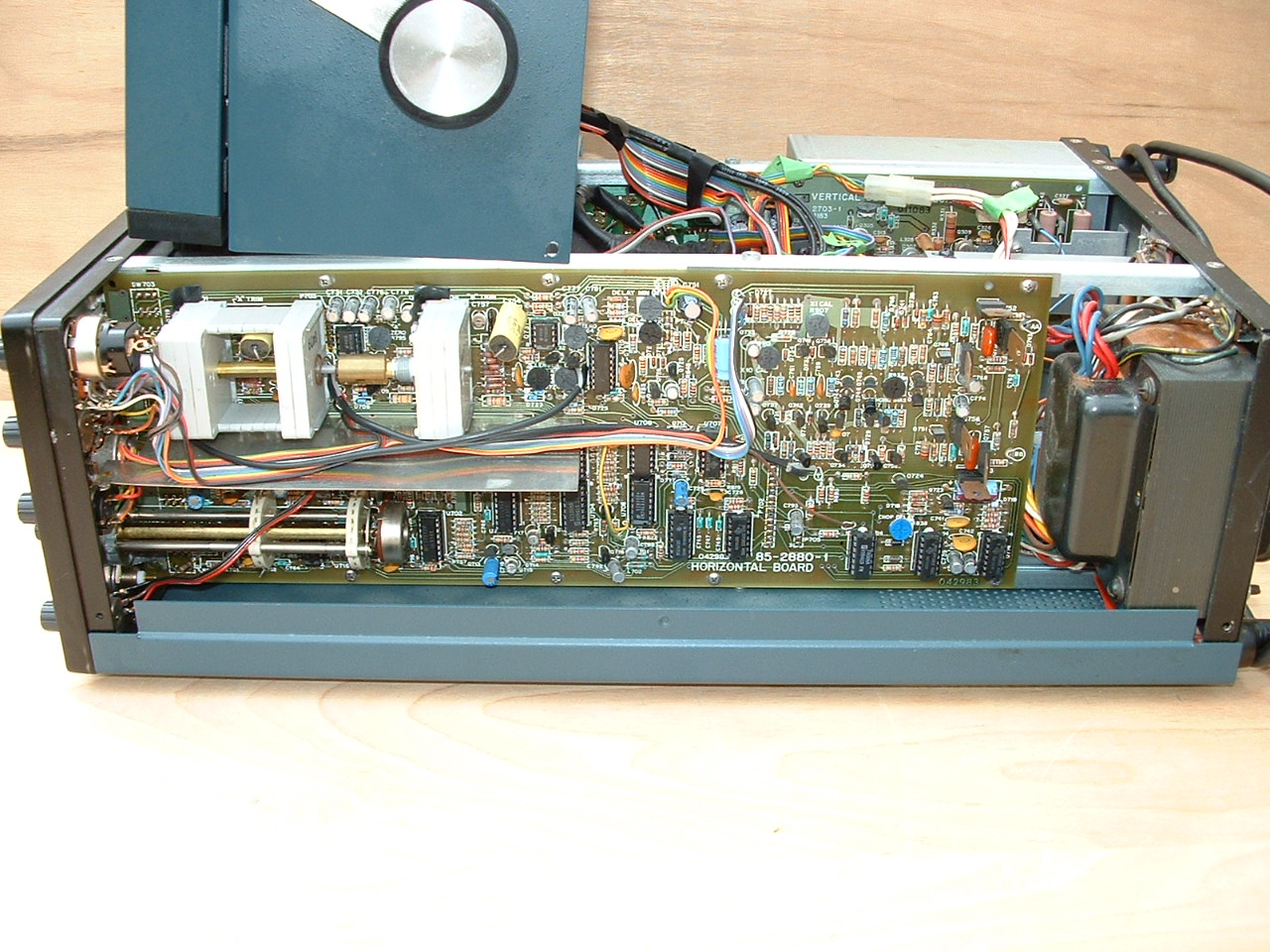

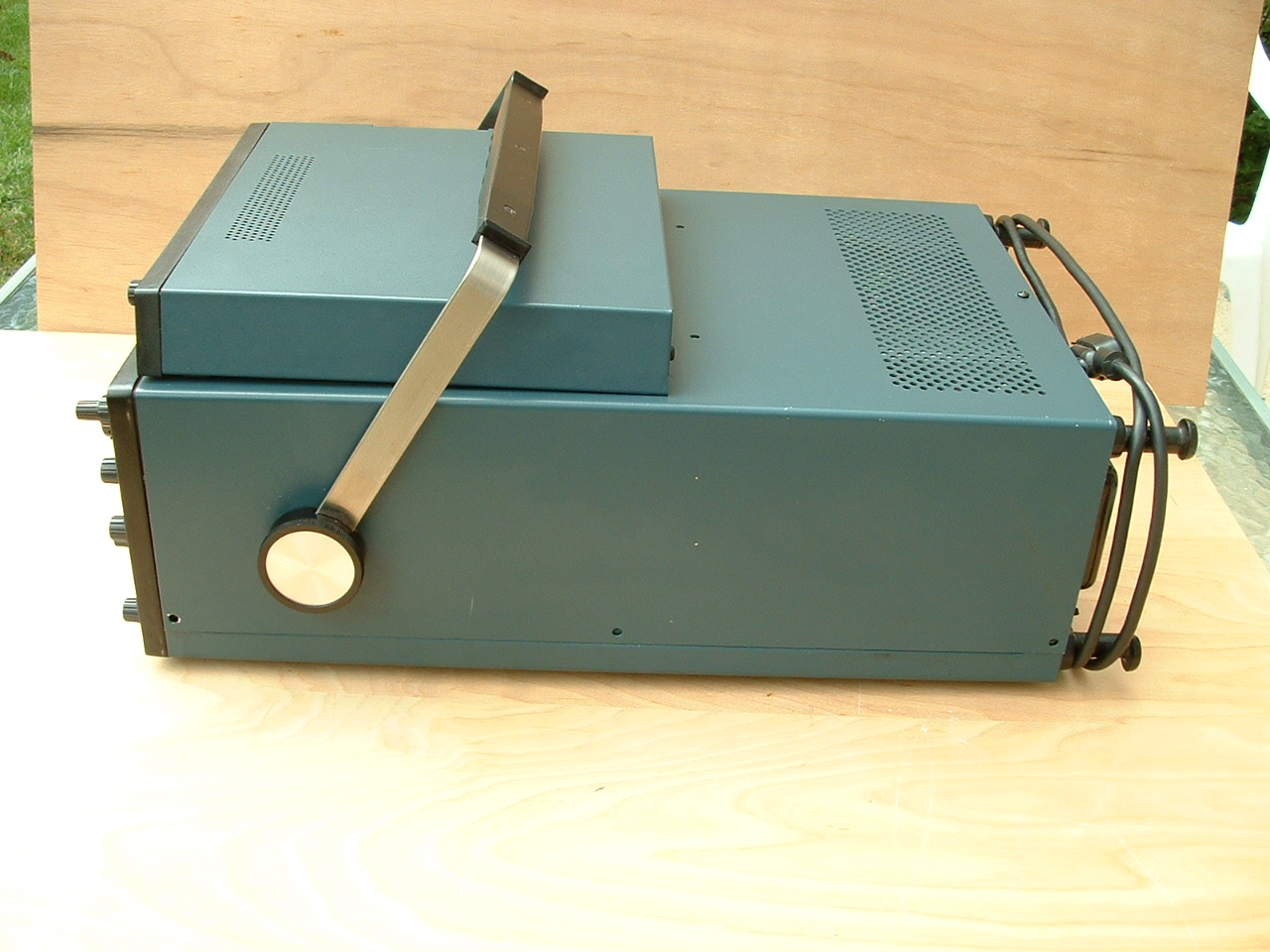

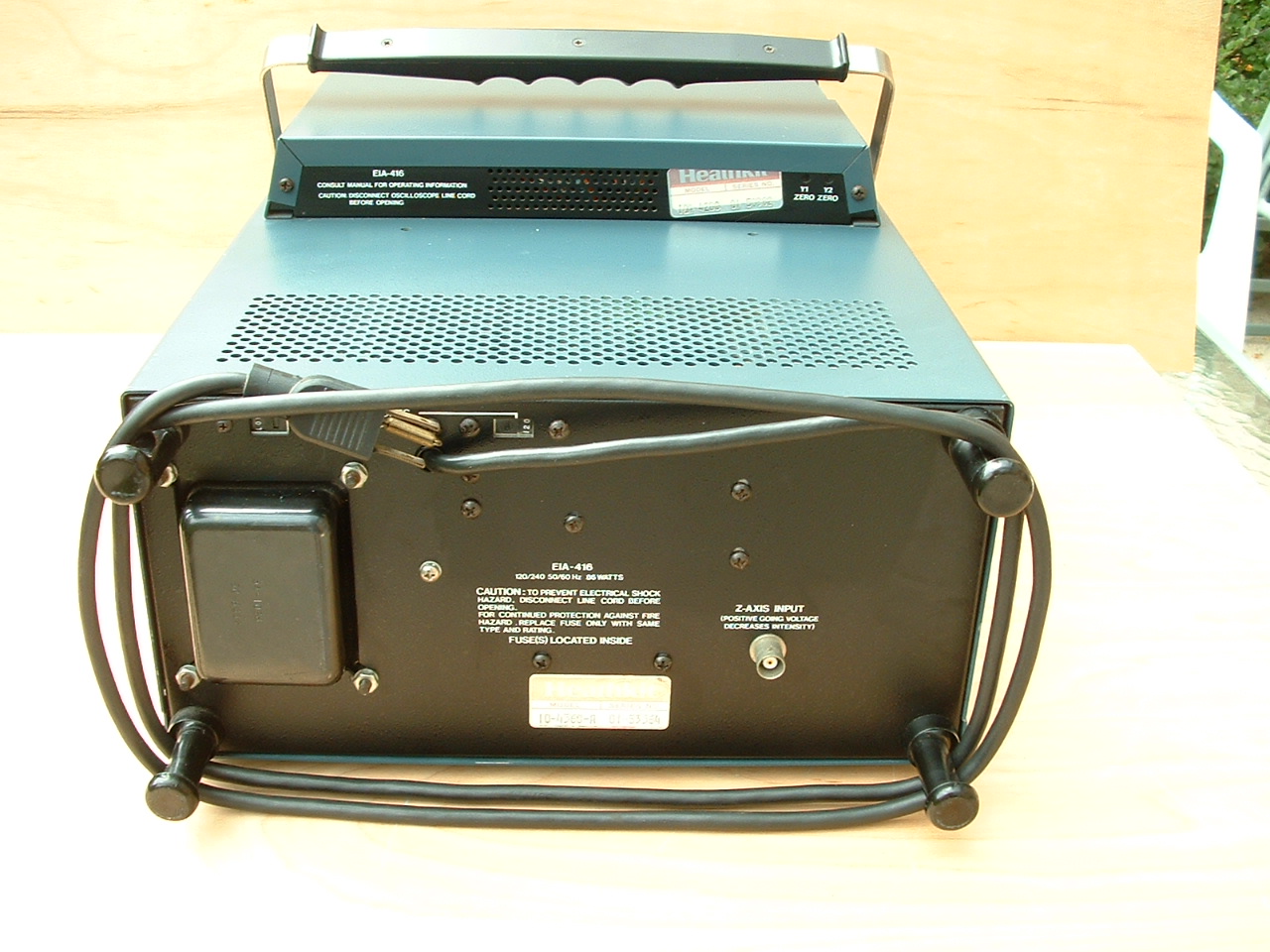

This is the very rare 60 MHz triple trace oscilloscope with it's matching Time-Voltage module. This is a close copy of Tektronix 465B with the DM-44 option.  The 465B is a 100MHz while the Heathkit is a 60 MHz. I sold my unit and bought a 465B with a DM-44. The Heathkit never had the reliability and stability of the Tektronix. If you are collector that is good but buy a 465B if you want reliability and accuracy.



bulletAssembly manual    26 megs (part number 595-3239)
bulletIllustration booklet    6.5 megs (part number 595-3239)
bulletOperations manual    18.5 megs (part number 595-3240)
bulletSchematic    2 megs (part number 595-3240)
bulletAssembly/Operation manual    IOA-4200 module    23.5 megs (part number 595-2985)
bulletIllustration booklet    IOA-4200 module    3.7 megs (part number 595-2985)
bulletSchematic    IOA-4200 module    1.7 megs (part number 595-2985)
bullet 4200 manual updates    403 KB (part number 591-4324)
