HW-5400

Home Interests My Opinion KC8RP Family Genealogy Favorites





80 thru 10 Meters Synthesized Single Sideband Transceiver

When buying a HW-5400 make sure it has the HWA-5400-2 option. This is a 4-pole 2.1 KHz SSB filter part number 404-640.

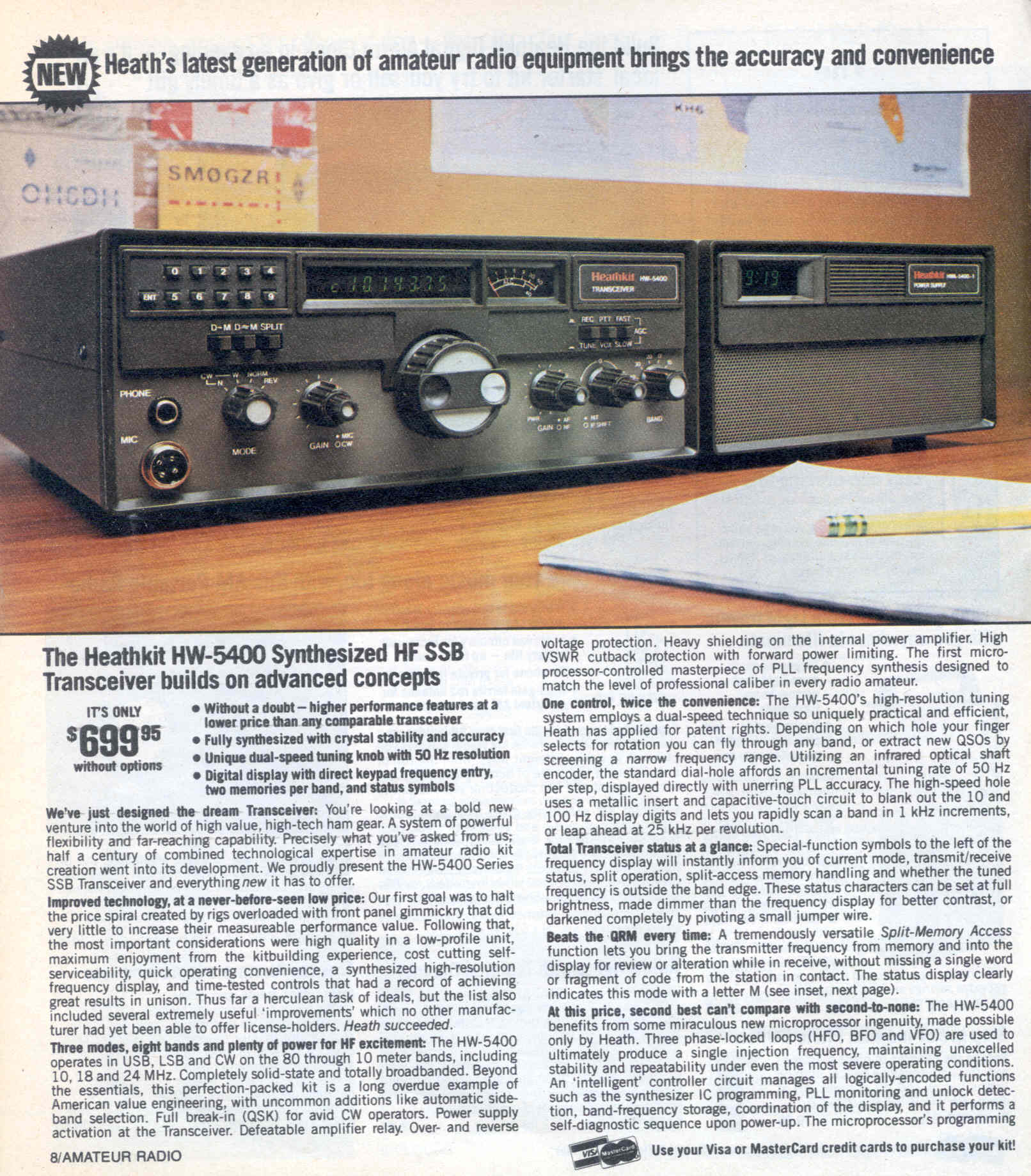

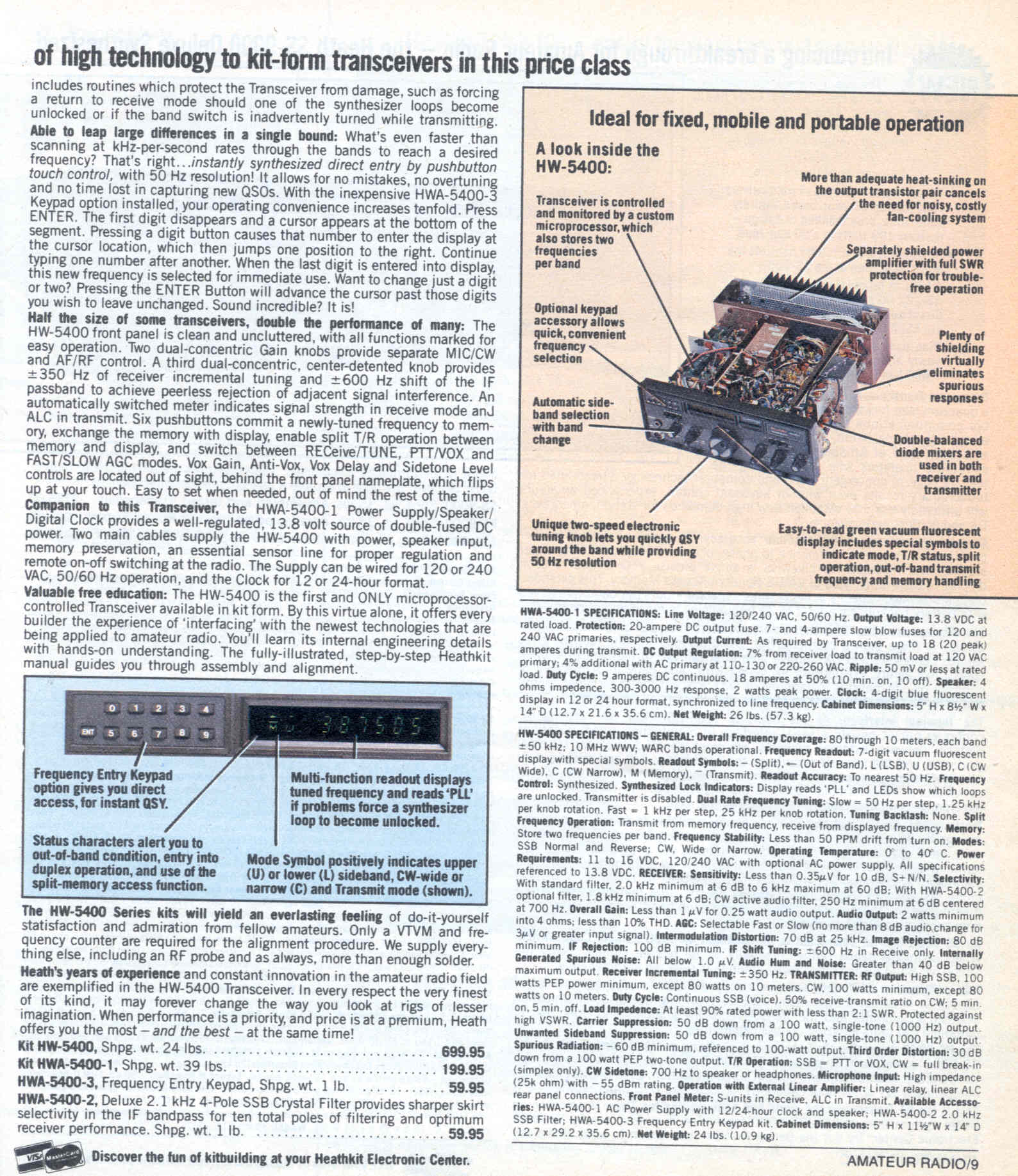

Introduced in winter of 1984.

horizontal rule

Several of the parts in this rig are also obsolete.  Heath does not give a cross-reference for the display.  It is probably a Futaba but a special manufacture for Heathkit.  Make sure if you buy this unit that the 2 options HWA-5400-2 & 3 are included otherwise you will probably never find them. I have sold all my Heathkit radios but will keep the WEB site updated as needed.

This radio was very difficult to build and many of them ended up at Heathkit either for repair or to finish building.


bullet Factory modifications    16 KB
bulletAssembly manual    101 megs (part number 595-2891-02)
bulletOperation manual   26 megs (part number 595-2952-02)
bulletIllustration assembly booklet    18 megs (part number 595-2891-02)
bulletIllustration operation booklet   1.9 megs (part number 595-2952-01)
bulletSchematic    5 megs (part number 595-2952-01)
bulletKeypad Assembly/Operation manual    3.3 megs (part number 595-2968)
bulletKeypad illustration booklet    930 KB (part number 595-2968)
