Camera

Dell™ Studio 1535/1536/1537 Service Manual

CAUTION: Before working inside your computer, follow the safety instructions that shipped with your computer.

CAUTION: Before performing this procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer, disconnect the modem from the wall connector and the computer, and remove any other external cables from the computer.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

Removing the Camera Module

1. Follow the instructions in Before You Begin.


2. Remove the display bezel (see Removing the Display Bezel).

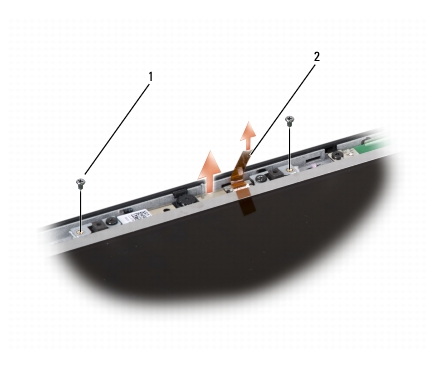

3. Loosen the two screws connecting the camera to the display cover.


4. Disconnect the camera cable and take out the camera module.



1

screws (2)

2

camera cable

Replacing the Camera Module

1. Follow the instructions in Before You Begin.


2. Replace and tighten the two screws securing the camera to the display cover.


3. Connect the camera cable to the connector.


4. Replace the display bezel (see Replacing the Display Bezel).
